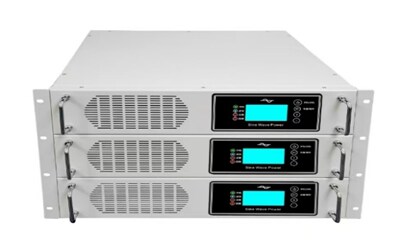

UPS, LEPUS, A5, AC380V, 3 phases, 18KW, Battery Volt 48V, high frequency, Racked type

Product Name                   :  UPS ,<LEPUS>, <A5>, AC 380V, 3 Phases, 18KW, Battery Volt 48V, , high frequency mode, Racked type

PRICE                                    :  see below

Minimum Quantity           :  1  set(s)/ID/order

Model                                    :  LEPUS

In one Unit                           : 1 product , one 3m extended switch board, one 3m extended LED display(equipment only)

Product Warranty             : one year

Accessories (optional)   : see below

Keywords:

UPS system,

uninterruptible power supply,

industrial UPS,

offline UPS,

custom UPS system,

18kVA UPS,

3 phases UPS,

UPS for data center,

UPS for industrial equipment,

UPS for telecom system,

UPS for medical equipment,

Modular UPS,

High efficiency UPS,

Lithium battery UPS,

Accessory: one 3m extended LED display

 Accessory: one 3m extended switch board

About this item

. 18KW, 3 phases off-grid UPS

. The high-frequency UPS power supply integrates DC to AC inverter and battery charger.

. With built-in isolation transformer, DC to DC isolation, DC to AC isolation.

. Pure sine wave output, fast UPS conversion design (<5ms).

. LCD display, real-time display of operating parameters, status, fault information, easy to quickly identify and solve problems. All

 parameters can be set in the background.

. High conversion efficiency, extremely low idle consumption. Small size and light weight.

. Comprehensive protection mechanism, including low voltage, high voltage, high temperature, short circuit, overcurrent, overload.

Application scenarios

Power backup:                                         battery charging and backup

Emergency power supply:                       emergency power backup to prevent sudden power outages

Small energy storage:                             small energy storage and backup scenarios, energy storage system main components

Charging:                                                can be used as a high-power charger

Onboard backup:                                    onboard, marine and other charging and storage scenarios

Technical parameters

Rated battery voltage                   DC 48V

DC voltage range                         DC 44.8-55.2V

Output power specification          18KW

UPS conversion time                   <5ms (UPS mode)

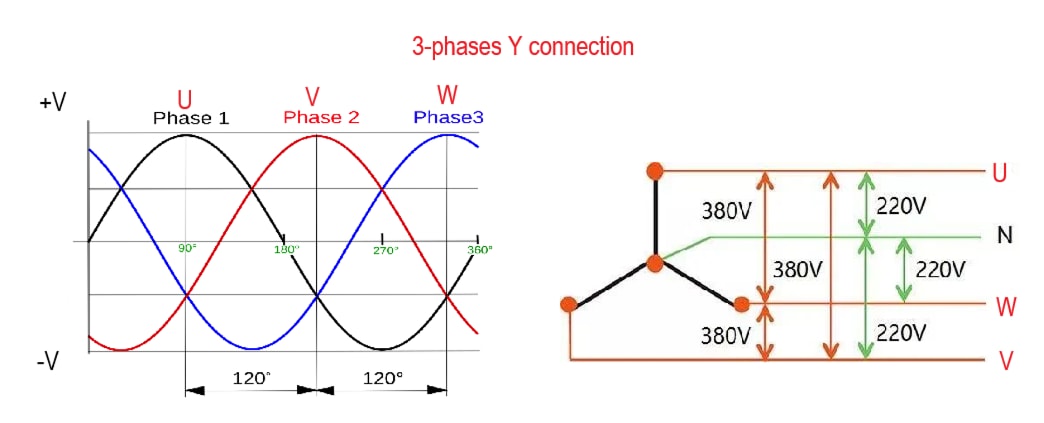

AC input range                            380Vac o(UPS mode), 3 phaes, Y wiring

Input frequency range                40-65HZ (recovery point: 42HZ, 63HZ)

AC output voltage                       380Vac o(UPS mode), 3 phaes, Y wiring

Inverter peak efficiency                                        95%

Output waveform                             Pure sine wave (full voltage range)

Peak power                                3 seconds 2 times rated power (surge capability)

Ambient temperature                               -20℃~+50℃

Usage altitude (m)                     ≤ 2000 (capacity reduces where altitude higher than1000m,

                                                   roughly 10% capacity reduction for each increase of 1000 m)

Cooling method:                       Temperature-controlled variable speed fan heat dissipation

Insulation strength:                   1500Vac, no breakdown for 1 minute

Insulation resistance:                Not less than 2M Ω

Protection function:                   Over-load protection, short-circuit protection, over-temperature protection Fan-fault protection,

                                                  over-voltage protection, under-voltage protection, frequency-overlimit protection, etc.

Product certification:                 CE-EMC certification, CE-LVD certification, FCC certification, UL inspection report, type inspection report

Note: For detailed parameters and instructions for use, please consult the business personnel.

General Electrical Knowledge, you may have interests.

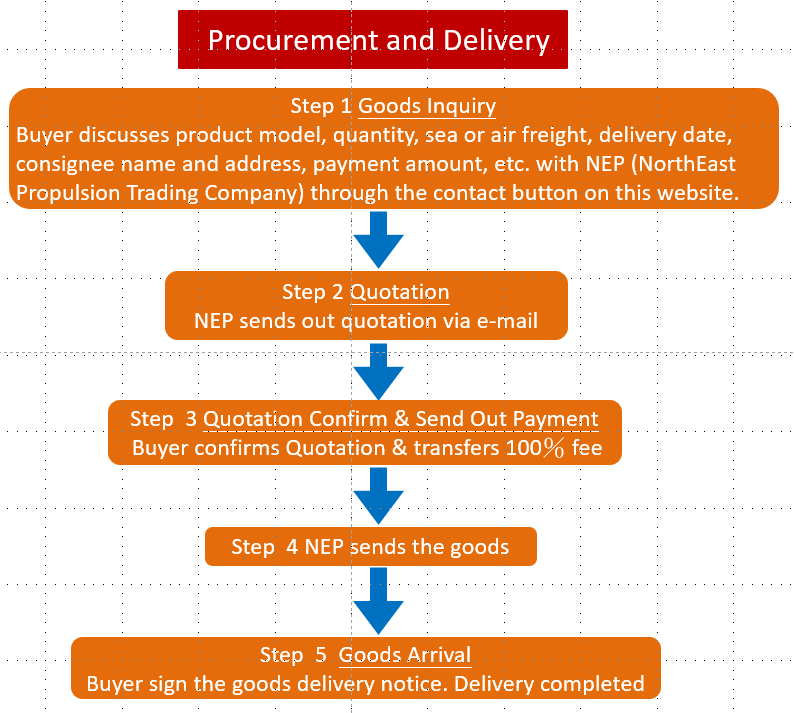

Procurement, Delivery, Goods exchange, Warranty. Have a scan before you make a decision.
