Voltage Stabilizer, Frequency Stabilizer
| Quantity | Discounted | Unit Price | Lead Time |
|---|---|---|---|
| 1 - 2 | $3,610.00 | $3,800.00 | 22 days |
| Voltage & Frequency Stabilizer, 4000W AC input 85~300V | |
|---|---|
| Rated Power: pure sine wave | |
| Rated AC ouput: 220V/50Hz, 110V/60Hz | |
| AC input:1 port,85-300 Vac, 30-100 Hz | |
| 4000W | |
| Weight: 8.5 Kg | |
| Dimension: 290(W)*450(H)*110(D)mm | |
| Warranty: one year |

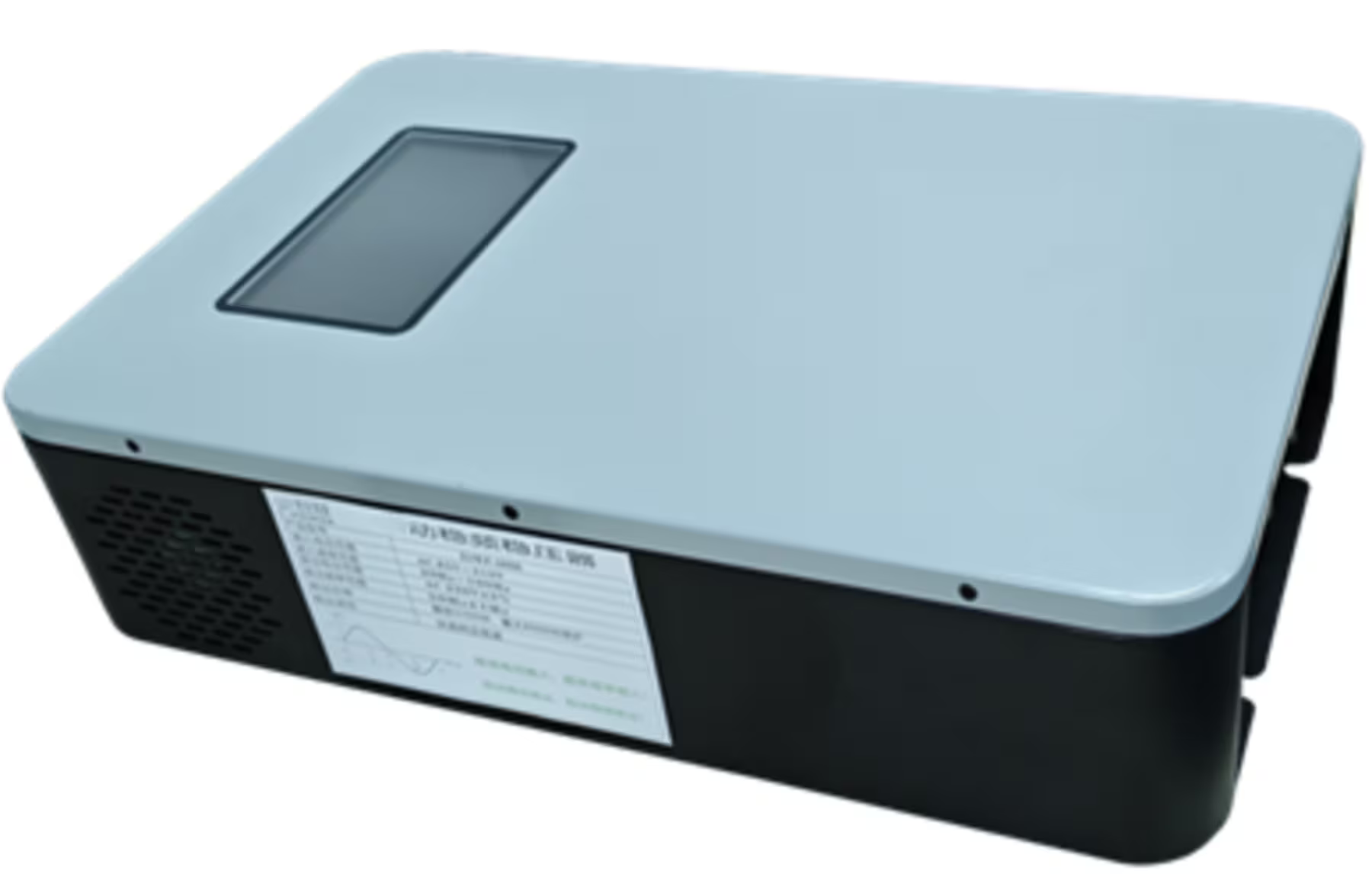

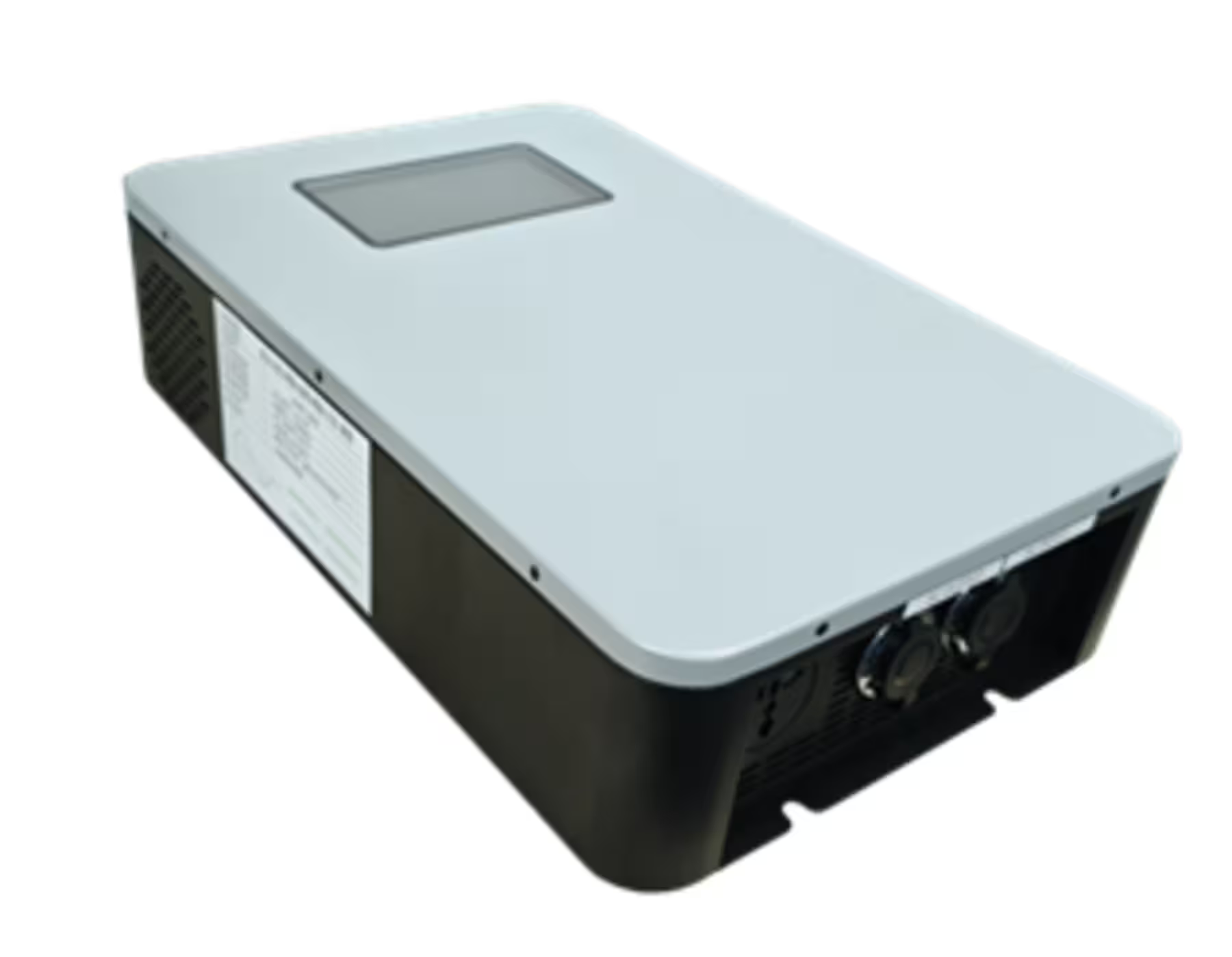

Product Name : Voltage & Frequency Stabilizer, 6000W, <WP-6000><SATURN>, AC input 85~300Vac, Frequency input 30 ~ 100 Hz
PRICE : see below
Minimum Quantity : 1 set/ID/order
Model : SATURN
In one Unit : 1 product
Product Warranty : one year
Keywords:
voltage and frequency stabilizer,
voltage & frequency stabilizer system,
voltage and frequency stabilizer supplier,
voltage and frequency stabilizer distributor,
voltage and frequency stabilizer exporter,
industrial voltage and frequency stabilizer,
voltage and frequency stabilizer for industrial application,
voltage and frequency stabilizer for power equipment,
automatic voltage and frequency stabilizer,
IEC compliant voltage and frequency stabilizer,
About this item
. 4000W~8000W voltage & frequency stabilizer
. Pure sine wave output, fast UPS conversion design (<5ms).
. High conversion efficiency, extremely low idle consumption.
. Comprehensive protection mechanism, including low voltage, high voltage, high temperature, short circuit, overcurrent, and overload.
Application scenarios
Voltage instability: stabilize instantly
Frequency instability: stabilize instantly
Technical parameters
WP-4000:
1 Output Power: 4000 W

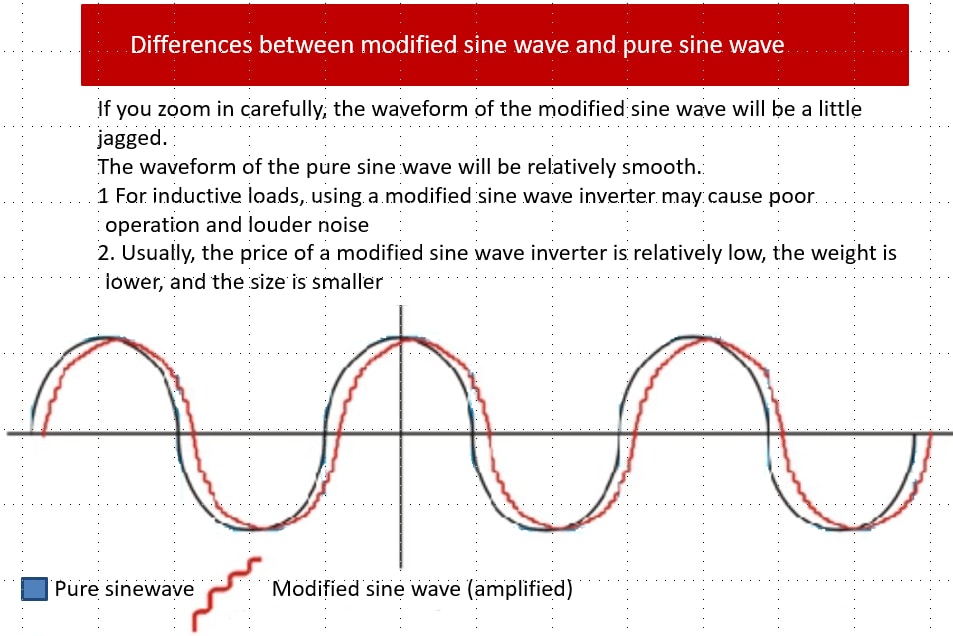

1 Output waveform: pure sine wave
2 Standard AC output: 220 V
3 No-load output Volt: 228 V
4 Load output Volt: 210 ~200 V
5 AC output frequency: 50 Hz
6 Frequency fluctuation range:48 ~ 52 Hz
7 Output efficiency: 92%
9 AC input voltage range: 85-300 Vac
10 Input frequency: 30-100 Hz
11 Input voltage and efficiency ratio:
AC 85 V: 75%
AC 95 V: 85%
AC 110 V: 90%
AC 130 V: 95%
AC 310 V: 98%
12 Input power factor:0.99
13 response time: < 5 ms
14 Type of Protection:
Input/ Output:
OVP (Over Volt Protection)
UVP (Under Volt Protection)
OCP (Over Circuit Protection)
OTP (Over Temperature Protection)
15 Operation Temperature -10~40℃
16 Net Weight/set(Kg):8.5
17 Dimension/set: W29*D11*H45cm
ES-6000:
same as ES-4000, except:
12 Net Weight/set(Kg):10.5
ES-8000:
same as ES-000, except:
12 Net Weight/set(Kg):12.5

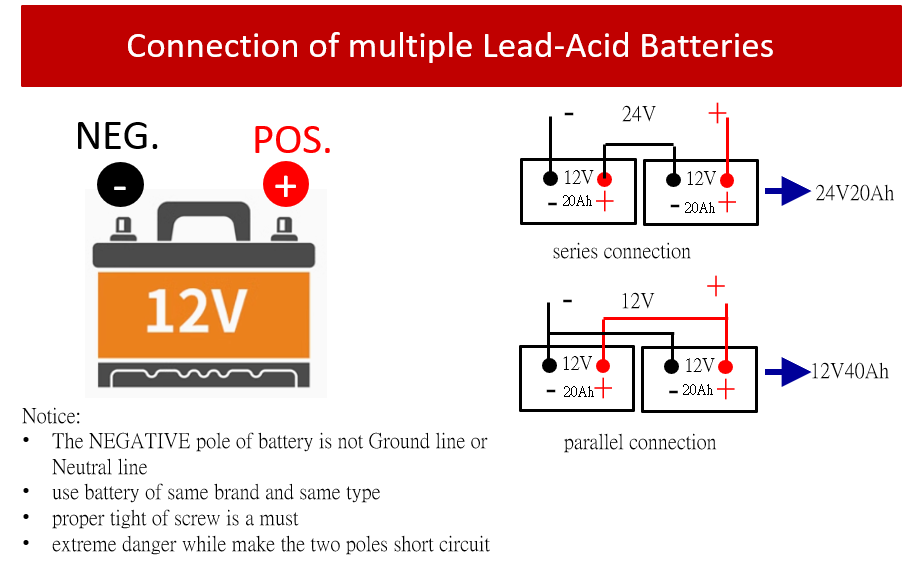

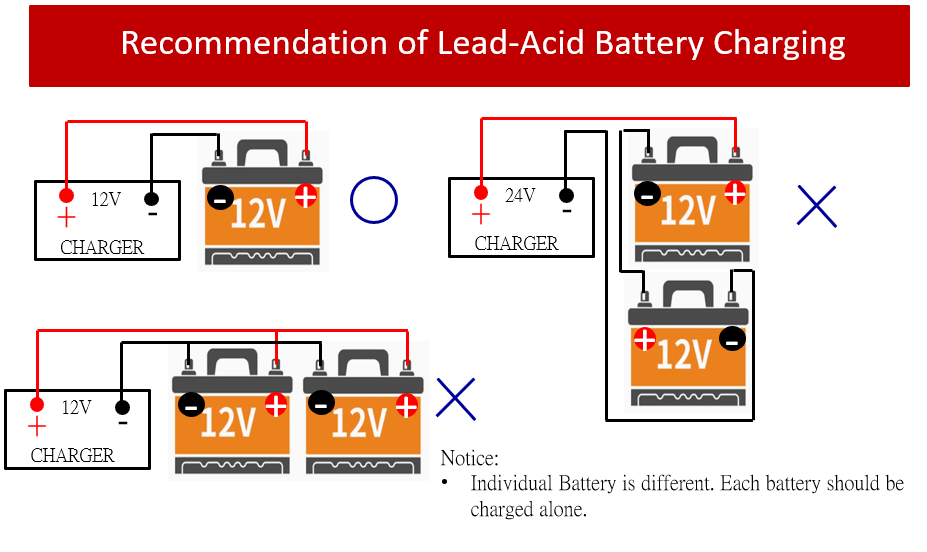

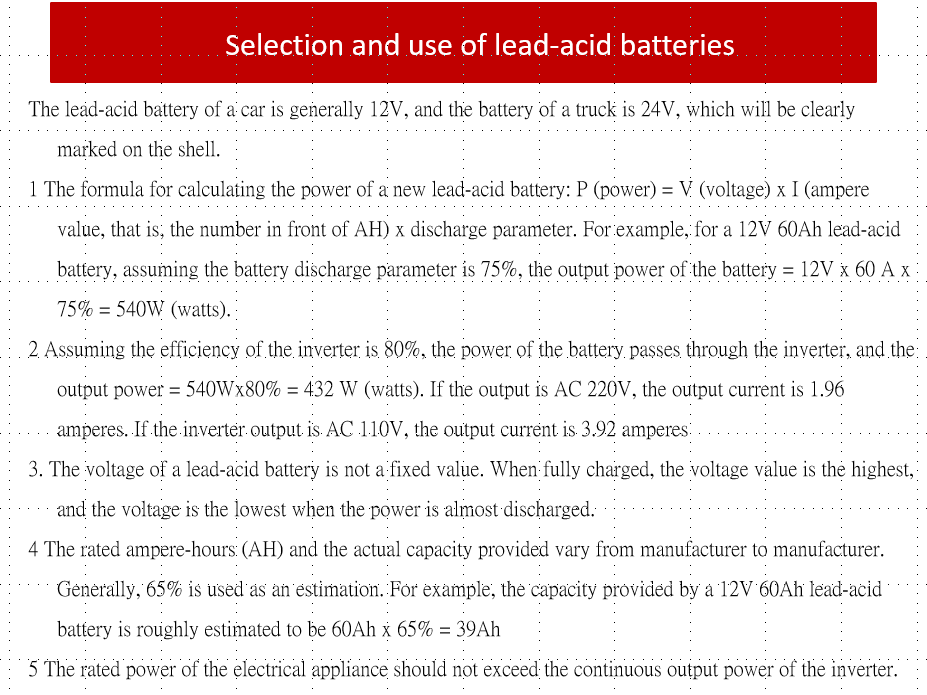

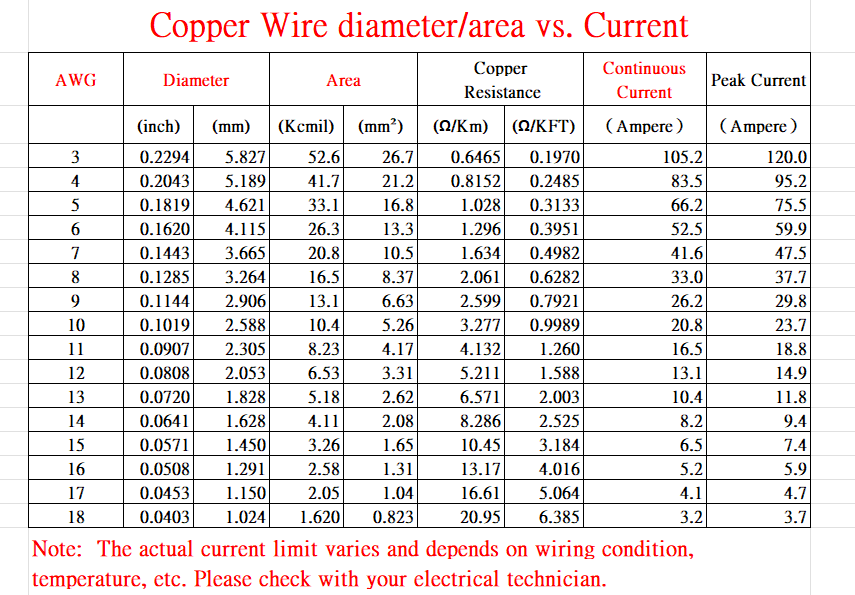

General Electrical Knowledge, you may have interests.

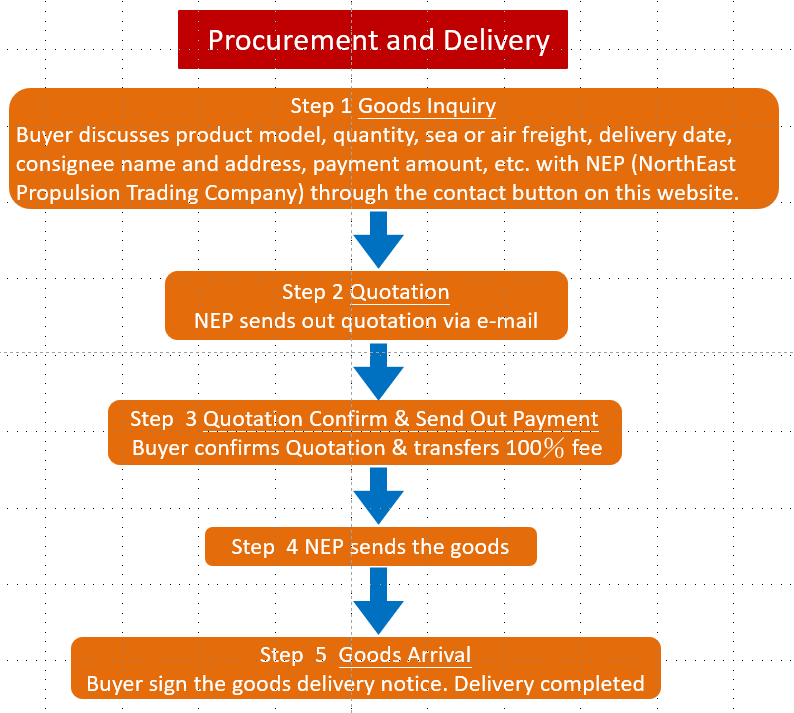

Procurement, Delivery, Goods exchange, Warranty. Have a scan before you make a decision.
