Suitable -40 degrees Celsius, high-altitude outdoor activities; lithium ternary cells.
| Quantity | Unit Price | Lead Time |
|---|---|---|
| 1 - 30 | $385.00 | 14 days |
| 12 V 48AH | |
|---|---|
| 2 output type: Anderson Power Connector, Banana Plug | |
| Communication: RS485, CANBUS, WiFi, Bluetooth | |

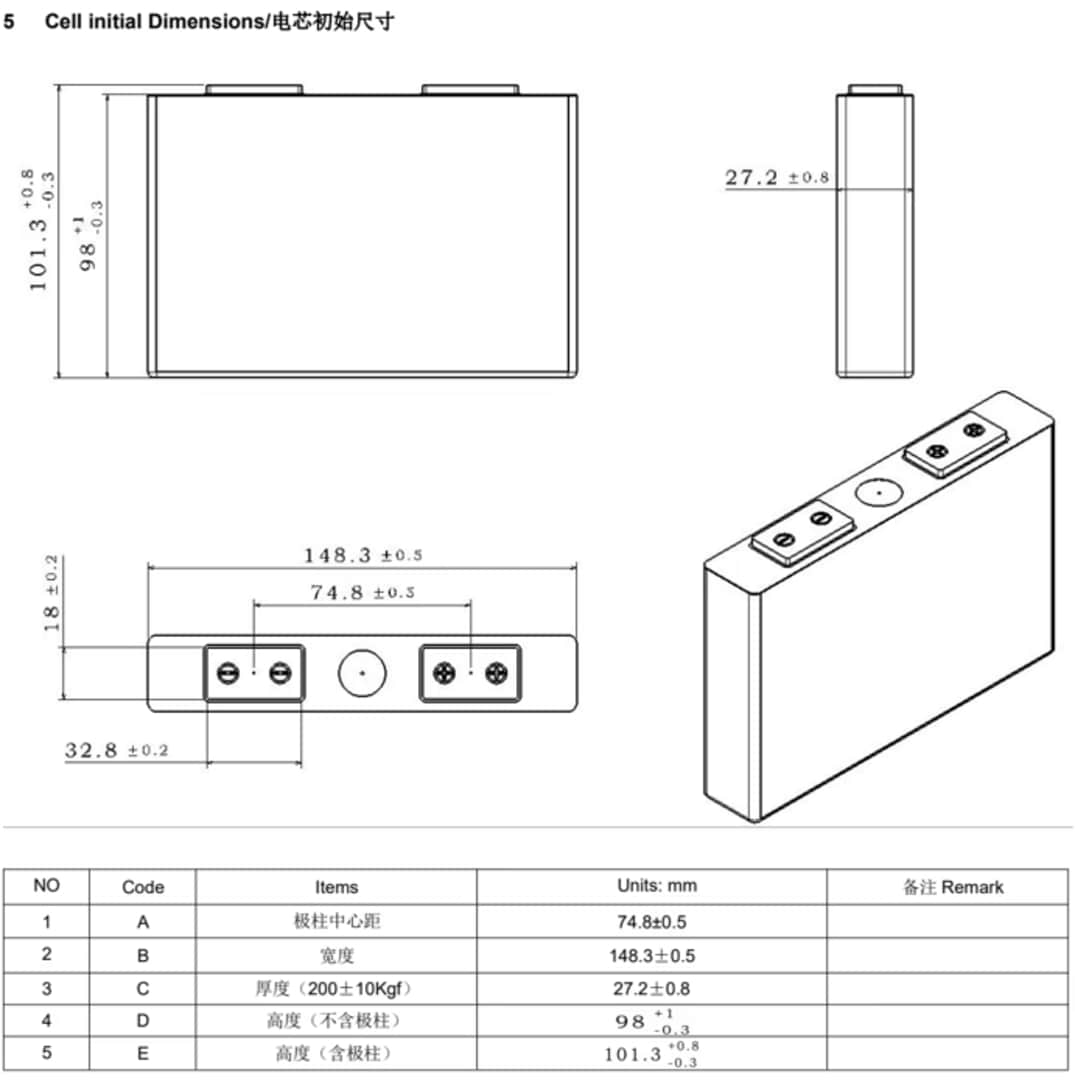

| Cell: NCM, 27-148-101, Cuboid type, 50Ah | |
| Battery: 7S1P | |
| Net. Weight /set (Kg): 13.2 | |
| Dimension /set H*W*D(mm): 125*440*500 | |
| AC In Volt of Adaptor: 110 or 220 V | |
| AC In Frequency: 50 or 60 Hz | |
| Output DC Volt: 24/12/5/3.3 | |
| Heating Plate | |
| RoHs | |
| Steel Shell | |
| Operation Temperature -40℃~50℃ |

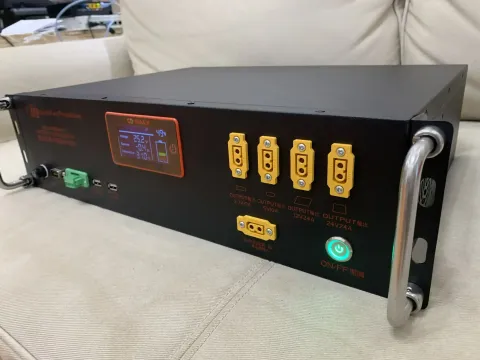

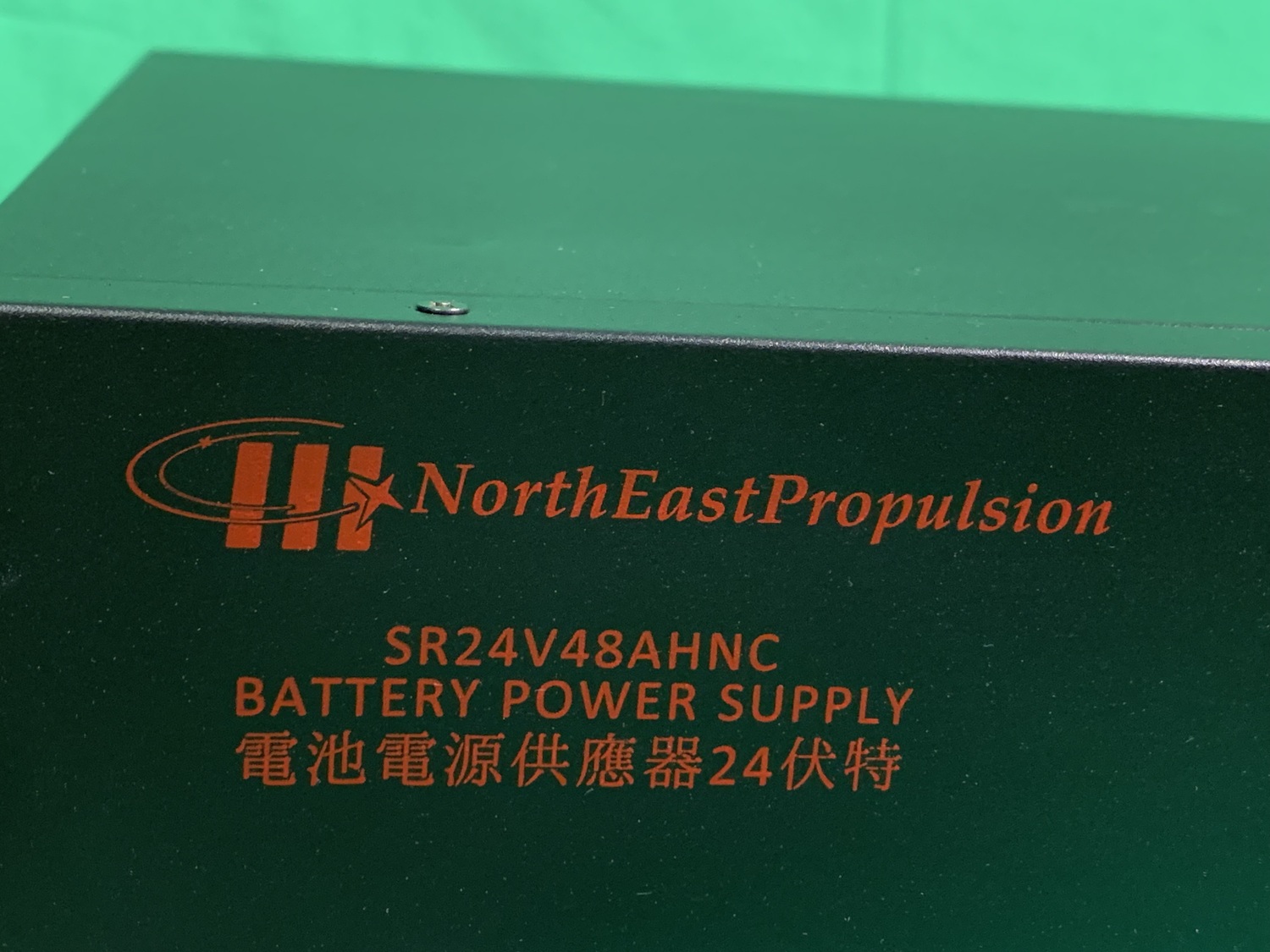

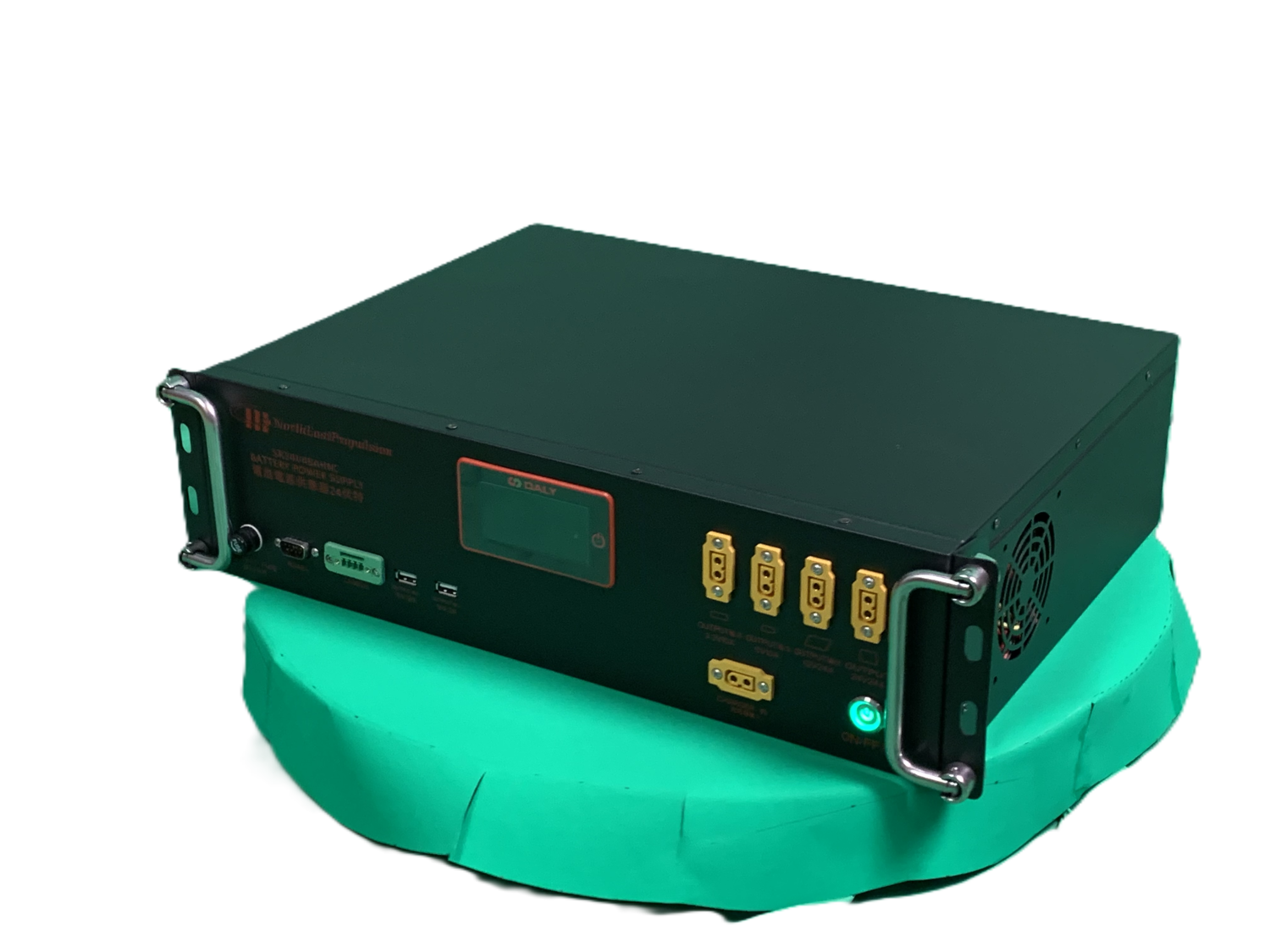

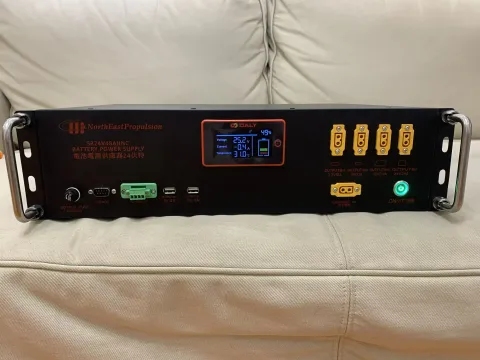

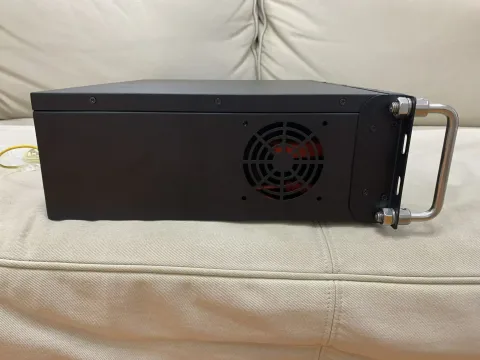

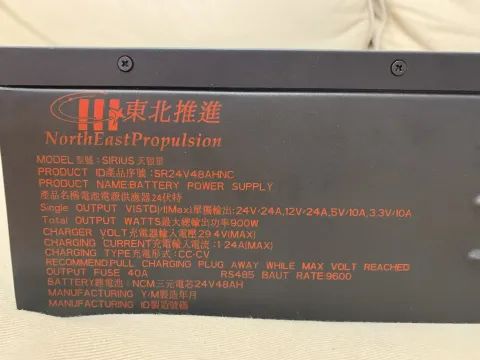

Product Name : Low-temperature battery power supply 24/12/5/3.3 volts/48 Ah cells
Model : SIRIUS
Product ID : SR24V48AHNC
In one Unit : one product, one charger, one pair of power cable (red and black colors)
Product Warranty : one year
Warranty : 1 year
Weight :13.2Kg
Features:
1. workable at -40 ℃ due to internal heating plate.
2 WiFi, CANBUS, Bluetooth, RS485.
3. Phone App and PC software available
4. 24V, 12V and 5V, 3.3V available
5. 900W power

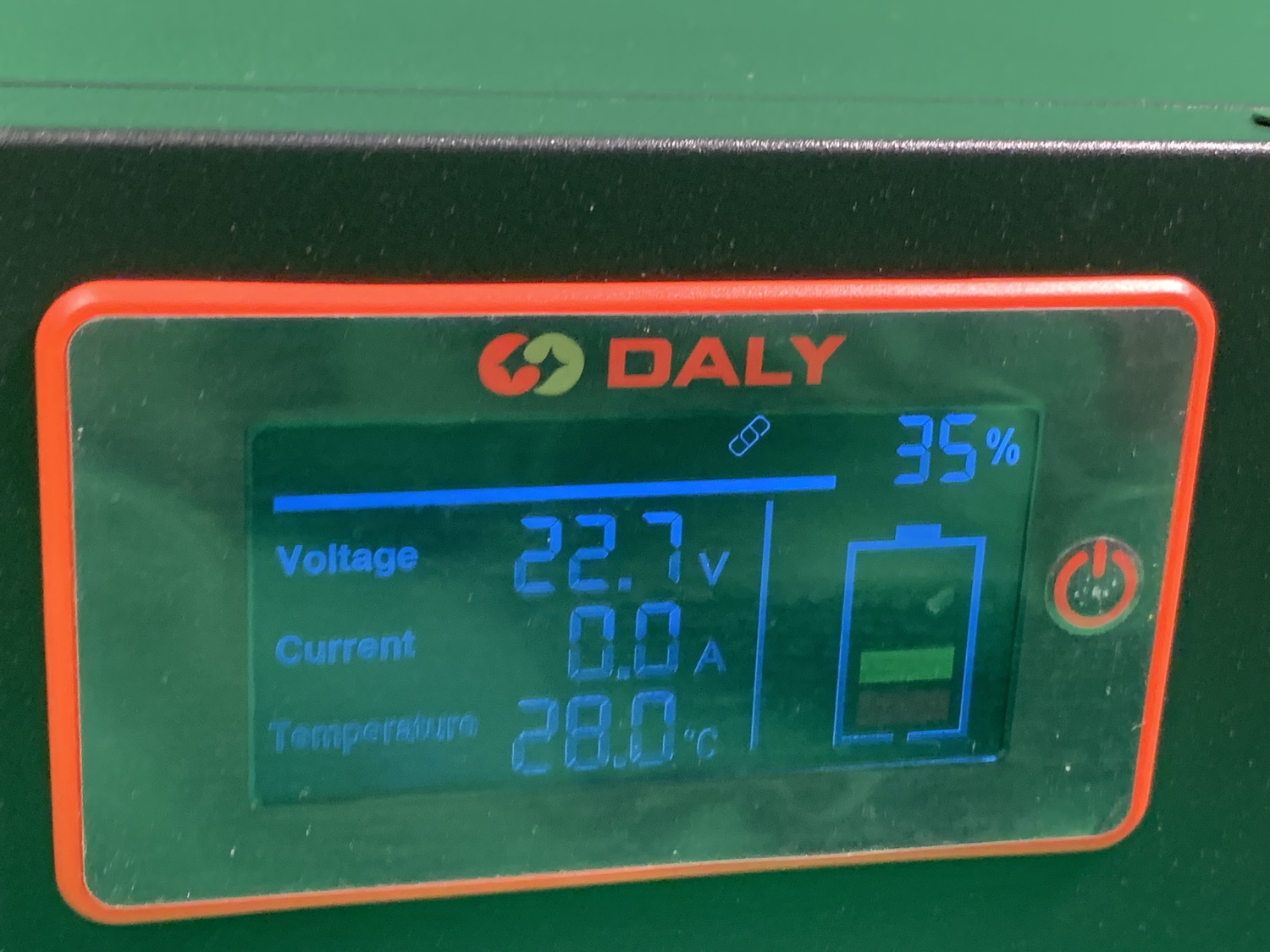

6. LED display
7. eight hours working time.
8. 10 years lifespan

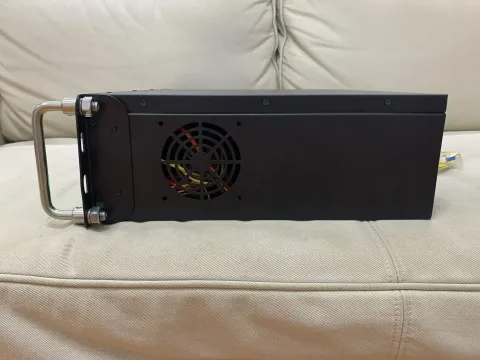

9. 3U rack type
Applications
- industrial control cabinets,
- equipment backup power supply,
- data center power supply,
- information center,
- base station
[How to use]
1 When charging, take out the dedicated lithium battery charger and connect the connector to the charging connector of the lithium power supply. Plug the AC plug into the wall socket you usually use, and charging will start. When the LED board shows full grid, unplug the charger and put the charger away for next use.

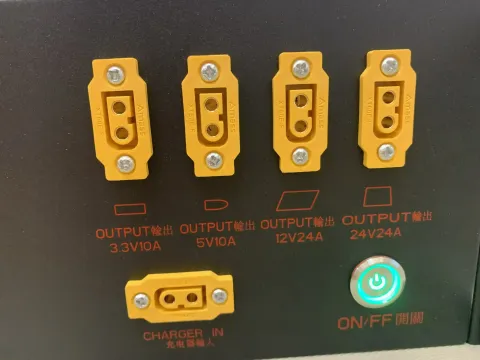

2 When in use, attach the specific output wire lock to the output terminal of the selected output voltage, connect the terminal at the other end to the terminal of the load, and then turn on the output switch to use it.
3 The LED board displays the power level. It should be fully charged and kept at full power when idle. To maintain sufficient operating time.
4 It takes about 4 hours from the LED board having only one red light to the full power when fully charged.
5 During charging and use, avoid being splashed with liquids and maintain a dry environment to maintain safety.
6 Dropping or heavy impact may affect the safety of use and life.
Specification
No | Item 項目 | Specifications 性能 | Remark 備註 | |
3 | 電芯種類 |
| 鋰三元電芯(NCM) |
|
4 | Rated Capacity容量 |
| 48.0Ah |
|
5 | Rated Voltage電壓 |
| 25.6V |
|
6 | Rated Power Capacity標稱功率容量(Wh)*1 |
| 1228.8Wh |
|
7 | Volt Range工作電壓範圍(最低、正常、最高) |
| Min 23.2V; Normal 25.6V; Max 29.6V |
|
8 | Maximum Charge Voltage最高充電電壓 |
| 29.6V |
|
9 | Standard Charge Current標準充電電流 |
| 12A | 0.25C5A |
10 | Discharge Ending Voltage放電截止電壓 |
| 23.2 V |
|
11 | Standard Discharge Current標準放電電流 |
| 12A | 0.25C5A |
12 | Continuous Output Current最大持續放電電流 |
| 48A | 1.0C5A |
13 | Maximum output current最大瞬間放電電流(1 sec) |
| 72A | 保護板放電過電流保護Protected by BMS |
14 | 外觀尺寸(mm)L*W*H Dimension |
| 300(L)*160(W)*120(H)mm |
|
15 | 重量(Kg) Weight |
| 15Kg |
|
16 | Operating temperature工作溫度 |
| 0℃ ~ 50℃ |
|
17 | Storage temperature儲存溫度 |
| -10℃ ~40℃ |
|
18 | 合乎RoHs規格 |
| yes |
|
20 | Outside Case Material |
| Steel鐵質 |
|
Detailed Specification
No | Item 項目 | Specifications 性能 | Remark 備註 | |

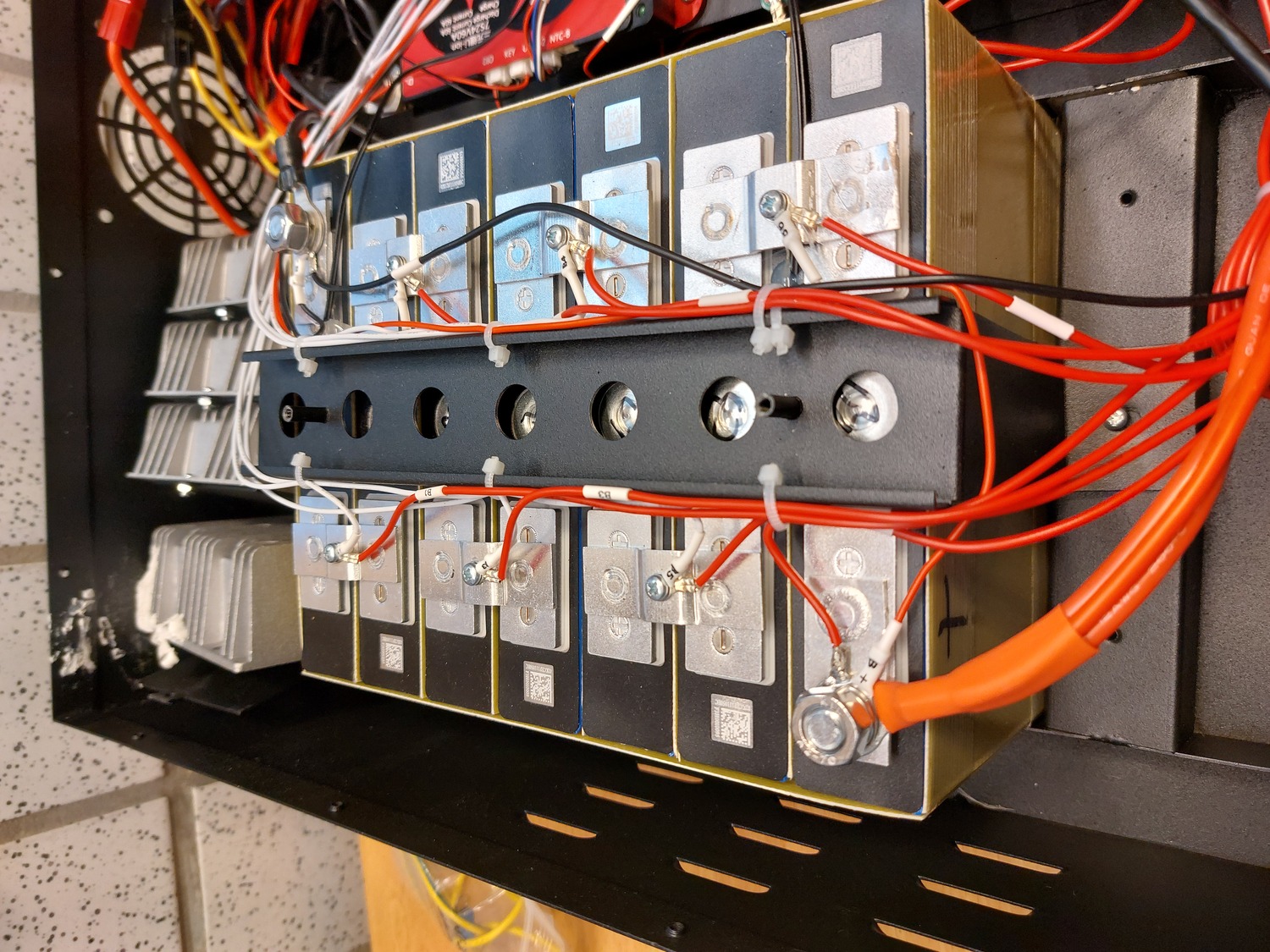

1 | 電芯組成Cell Combination |
| 7串1並(7 series 1 pararrel ) |
|
2 | 電芯外型Cell Appearance |
| 長方型 Box Type |
|
3 | 電芯容量Cell Capacity |
| 50Ah |
|
4 | Charge Mode充電模式 |
| CC → CV 定電流轉定電壓 |
|
5 | B.M.S |
| YES |
|
6 | Self-discharge rate |
| 3 ~ 5% (per month) |
|
7 | 介面Connector |

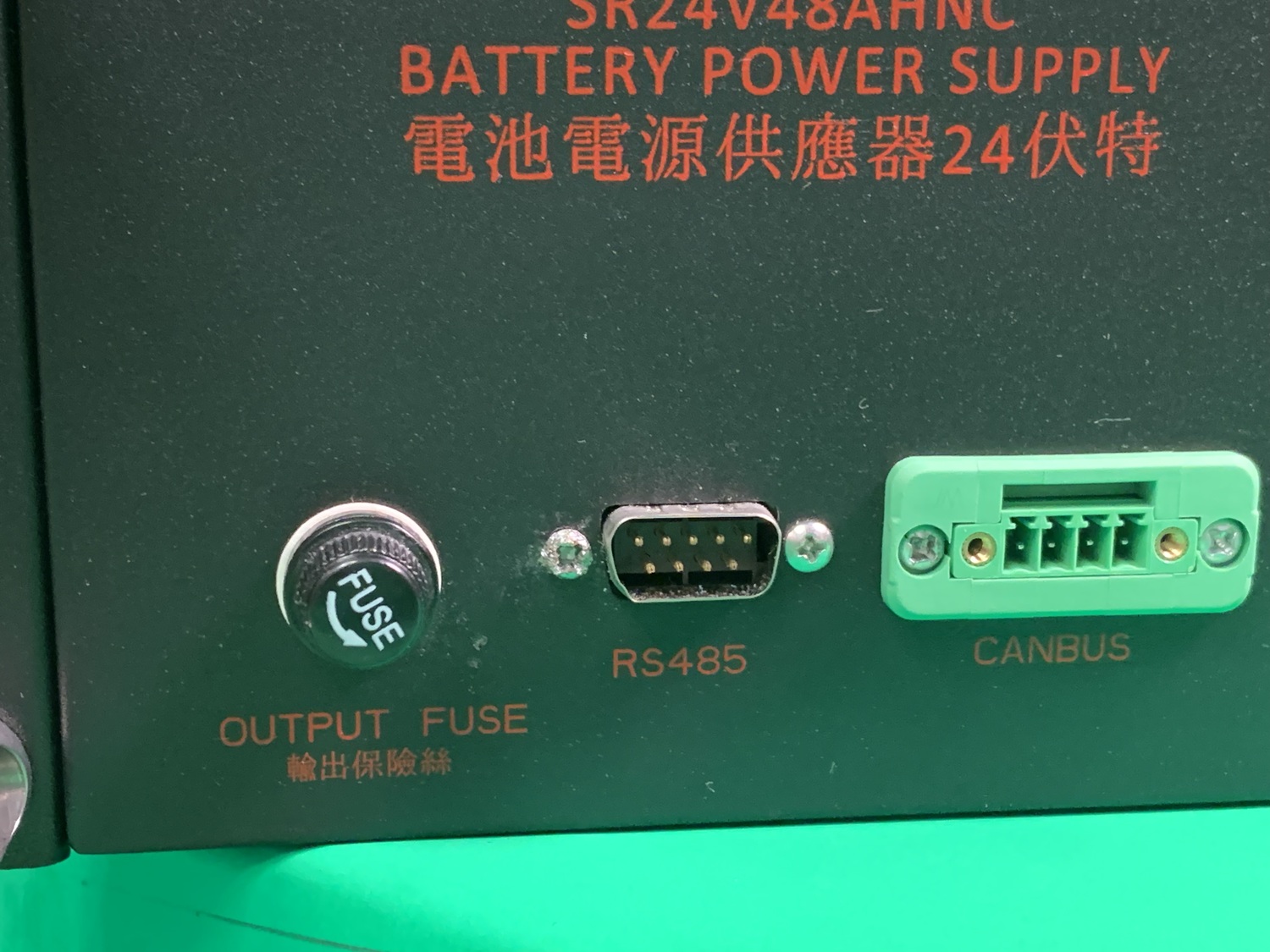

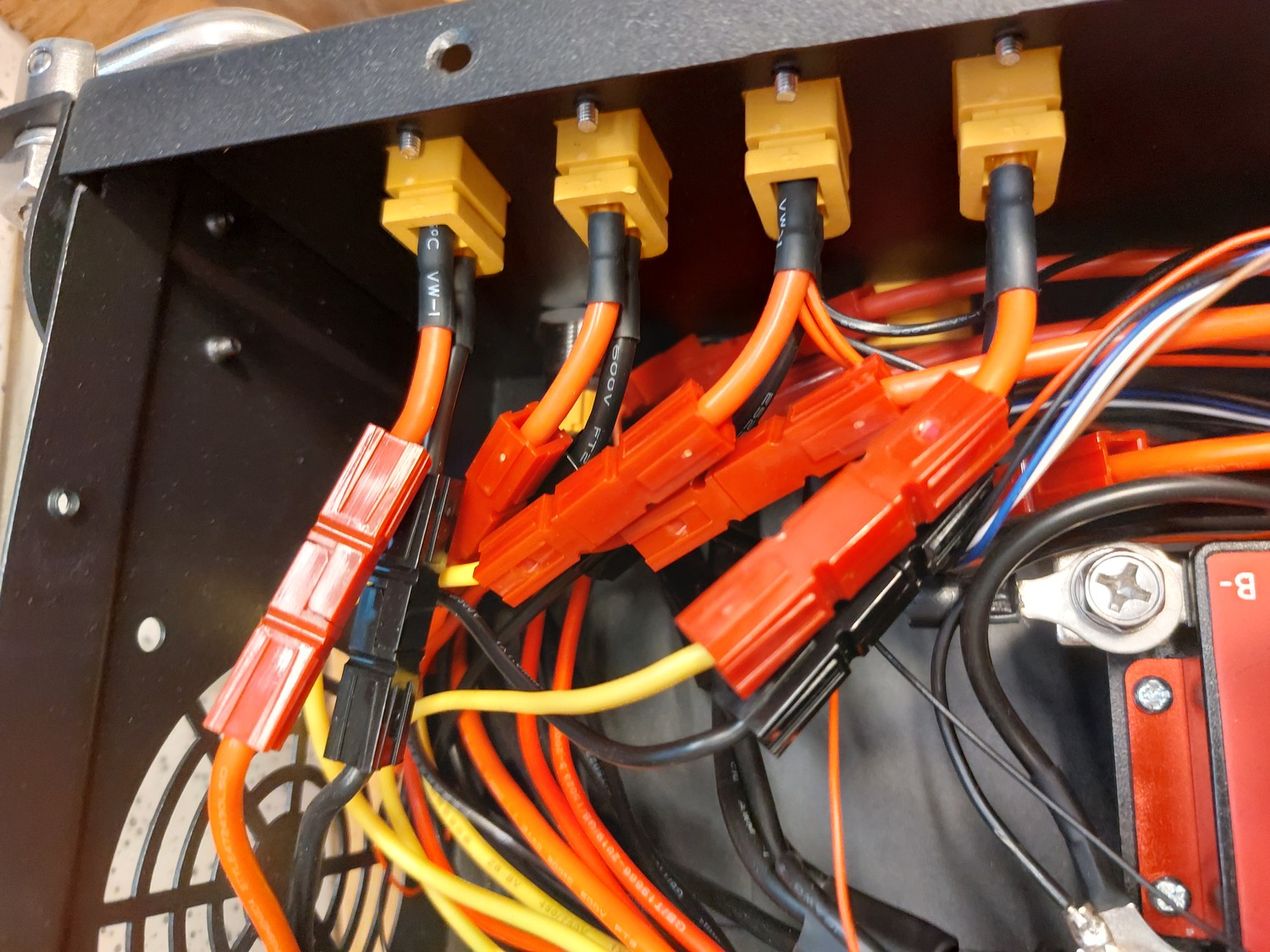

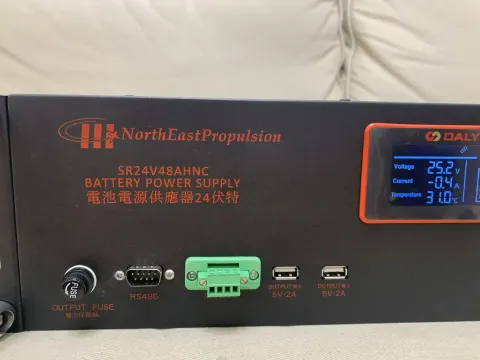

| Connector to Charger對充電器連接頭種類:X60接頭 Connector to Load對放電設備連接頭種類: Anderson Connector安德森接頭 CANBUS: 綠色端子 blue connector RS485:DB-9 |
|
8 | Same connector of Charge and Discharge? 充放電端是否同端 |
| No |
|
