All-In-One UPS, Solar DC input, City AC input, Battery inside
| Quantity | Unit Price | Lead Time |
|---|---|---|
| 1 - 10 | $308.00 | 20 days |
| 11 - 30 | $293.00 | 22 days |
| Output Power | 300W |
|---|---|
| Capacity | 896Wh |
| waveform | pure sine wave |
| Rated Voltage | 230V, 50/60Hz |
| Battery | LiFePO4, single cell, 280Ah |
| Solar Input | MPPT 12-55Vdc, Max 300W |
| AC input | 100-270Vac, 50/60Hz |
| DC output | USB-A*2 & Type-C*1: 15W total |
| DC output | 5521*3: 12V3A, 36W Max |
| Operation Temperature | -10~40℃ |
| Protection rating | IP20 |
| Warranty | 1 year |
Product Name : All-In-One UPS, 300 W, 896Wh,
Description: Solar DC input, City AC input, DC 5/12V output, Lithium Battery inside
Model : ORION
In Pack : 1 product
Product Warranty : one year
About this item
. 300W All-In-One UPS, with LiFePO4 cell, 896 Wh
. Pure sine wave output, fast UPS conversion design (<20ms).
. High conversion efficiency, extremely low idle consumption. Small size and light weight.
. Comprehensive protection mechanism, including low voltage, high voltage, high temperature, short circuit, overcurrent, and overload.
Application scenarios
Power backup: battery charging and backup
Emergency power supply: emergency power backup to prevent sudden power outages
Small energy storage: small energy storage and backup scenarios, energy storage system main components
Charging: can be used as a high-power charger
Onboard backup: onboard, marine, and other charging and storage scenarios

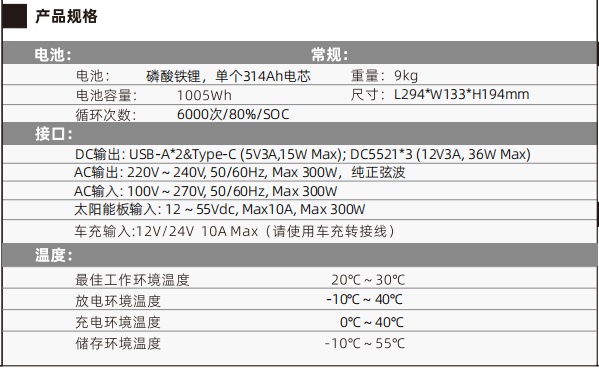

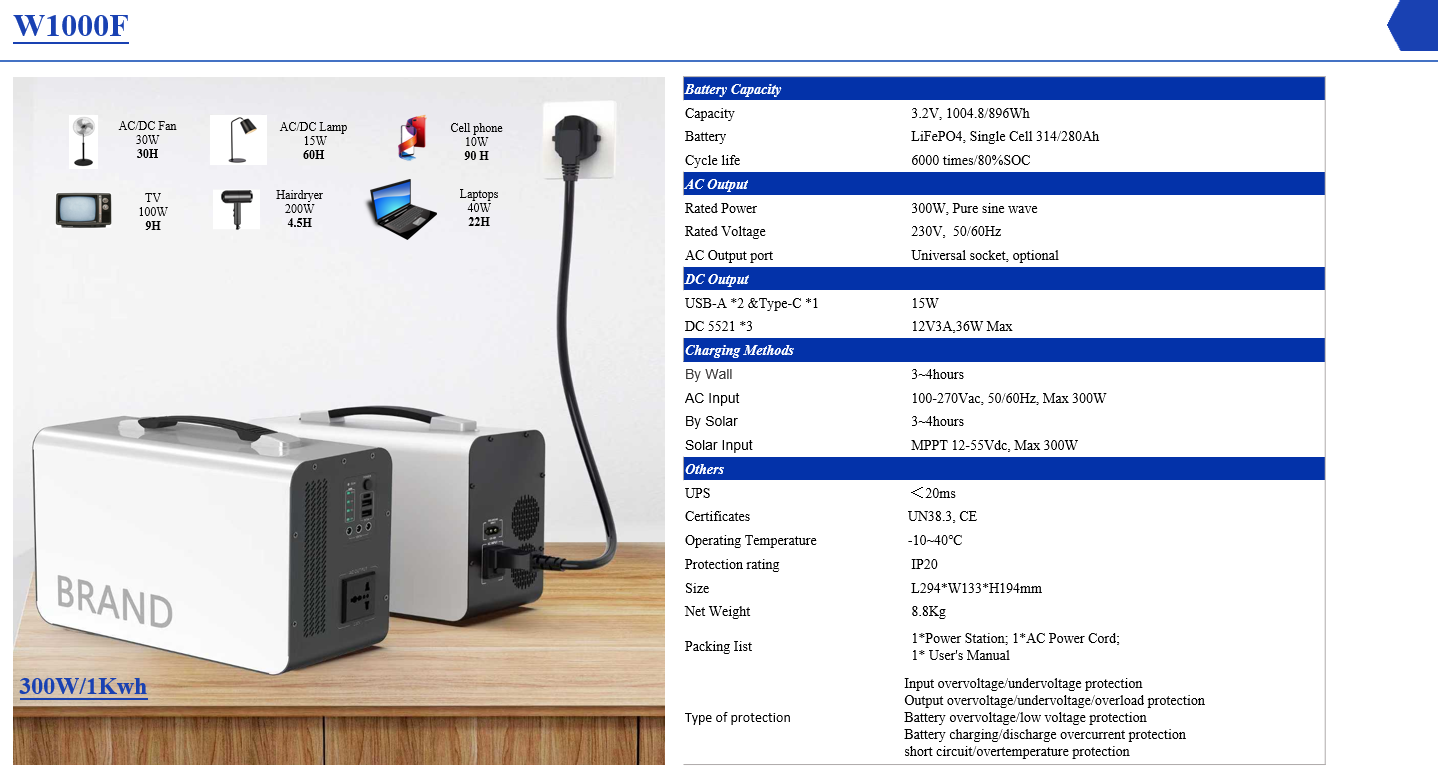

Technical parameters
Rated Power: pure sine wave
Rated Voltage: 230V, 50/60Hz
AC output port: universal socket
DC output:
USB-A*2 & Type-C*1: 15W total
DC 5521*3: 12V3A, 36W Max
Charging method:
By Wall
AC input:100-270Vac, 50/60Hz, Max 300W
By Solar:
MPPT 12-55Vdc, Max 300W
UPS response time: <20ms
Type of Protection:
Input/ Output/Battery:
OVP(Over Volt Protection)
UVP(Under Volt Protection)
OCP(Over Circuit Protection)
OTP(Over Temperature Protection)
Operation Temperature -10~40℃
Protection rating: IP20
Parts: 1 AC Input Cord, 1 Solar Input Cord
Ceretificate: UN38.3, CE
